Awaiting Listing

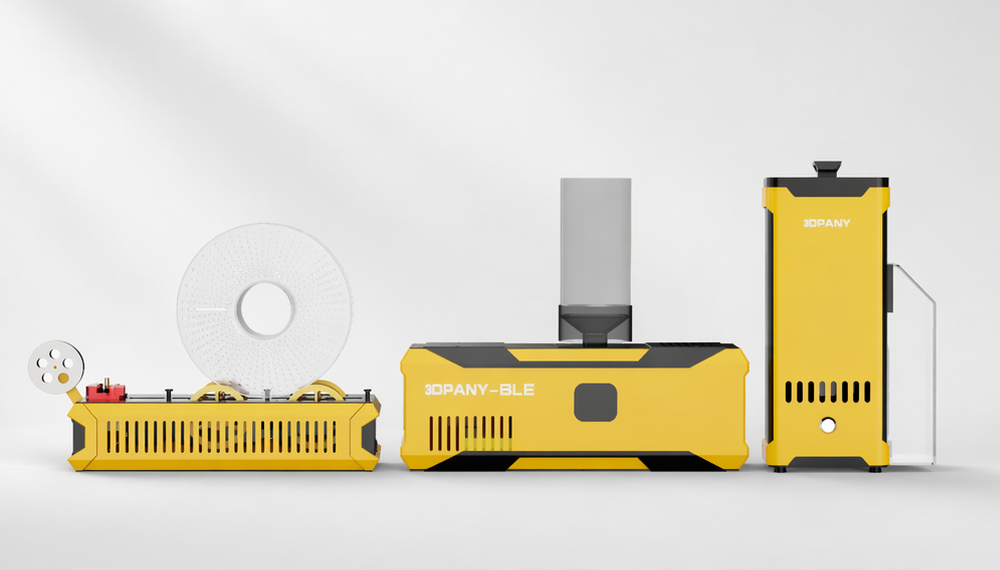

BLE Extruder

Core Specifications

Parameter Value

Body Material High-strength structural steel + plastics

Dimensions 410×120×120mm +350×130×100mm

Weight 16kg

Production Rate 300 g/h

Temperature RangeAmbient–300°C

Max Power 300W

Cruising Power 200W

Power consumption 0.5 kWh/kg (per kilogram of filament)

Screw Material Nitrided alloy steel (HRC58-65)

Additional Notes:

Power Supply: AC 110V/220V (50/60Hz), globally compatible.

Filament Diameter: 1.75 mm (optional 2.85/3.0).

Supported Materials: PLA, ABS, PETG, TPU, PET, PP, PS, PA, Nylon, PC, PVA, etc.

2.4” Touchscreen: Real-time monitoring of temperature and speed

Spooling System: Auto-speed adjustment, compatible with spools ≤110mm wide, ≤280mm diameter

Design Notes:

Precision: ≤0.05 mm for virgin materials, ≤0.07 mm for recycled materials.

Plastic Crusher

Core Specifications

Parameter Value

Body Material High-strength structural steel

Dimensions 105×105×230mm

Maximum crushed material 90×90×100mm

Max Power 150W

Additional Notes:

Power Supply: AC 110V/220V (50/60Hz), globally compatible.

Supported Materials: PLA, ABS, PETG etc.

Suitable for relatively hard materials.
