Filament Extruder & Recycler
Core Specifications
Parameter Value
Body Material High-strength structural steel + plastics
Dimensions 480×480×200 mm
Weight 16 kg
Production Rate 400 g/h
Temperature Range Ambient–400°C
Max Power 500 W
Cruising Power 200 W
Power Consumption 0.5 kWh/kg (per kilogram of filament)
Screw Material Nitrided alloy steel (HRC58-65)
Additional Notes:
Power Supply: AC 110V/220V (50/60Hz), globally compatible.
Filament Diameter: 1.75 mm (adjustable range: 0.3–2.2 mm).
Supported Materials: PLA, ABS, PETG, TPU, PET, PP, PS, PA, Nylon, PC, PVA, PEEK、etc.
4.3” Touchscreen: Real-time monitoring of temperature, diameter, and progress
Spooling System: Auto-speed adjustment, compatible with spools ≤110mm wide, ≤280mm diameter
Auto-Shutdown: Stops heating、motors、fan at preset time/length
Design Notes:
Precision: ≤0.03 mm for virgin materials, ≤0.04 mm for recycled materials.
Sensor: 3DPANY Laser Diameter Sensor (500 scans/sec).
Control System: Closed-loop control + AI Diameter Compensation.

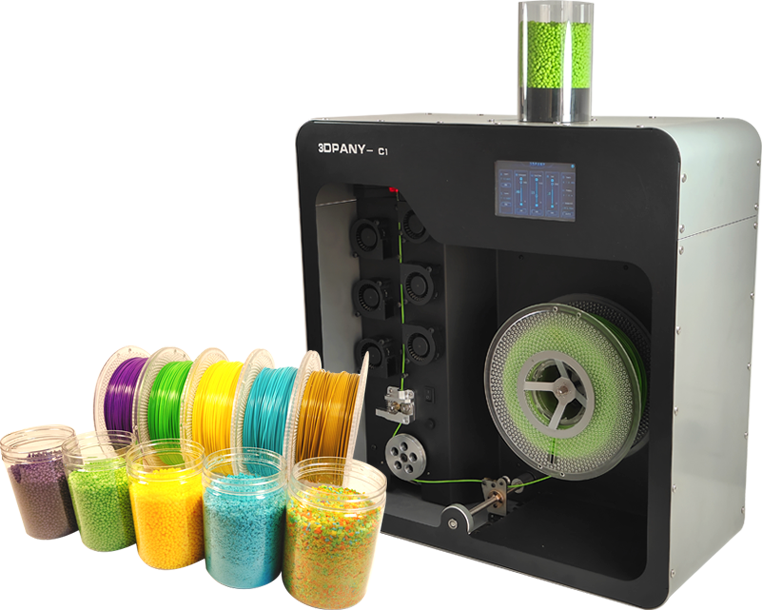

The C1 extruder is not just a high-precision filament production device but a complete closed-loop recycling system, dedicated to transforming 3D printing waste into reusable, high-quality filament, ultimately putting an end to the traditional linear model of 'print-discard-pollute
Desktop series: Lightweight design, ideal for education, home use, and small studios. Industrial Series: Efficient production for automotive, medical, and aerospace applications. Intelligent Ecosystem Series (C1): Industrial grade precision that pushes the boundaries of desktop device functionality.
What can C1 do for you？
The C1 desktop extruder is designed to meet the demands of high-volume 3D printing environments. With a maximum output of 400g/hour, it can seamlessly supply filament to 10 or more 3D printers running at full speed.Relentless Reliability: 7×24 operation

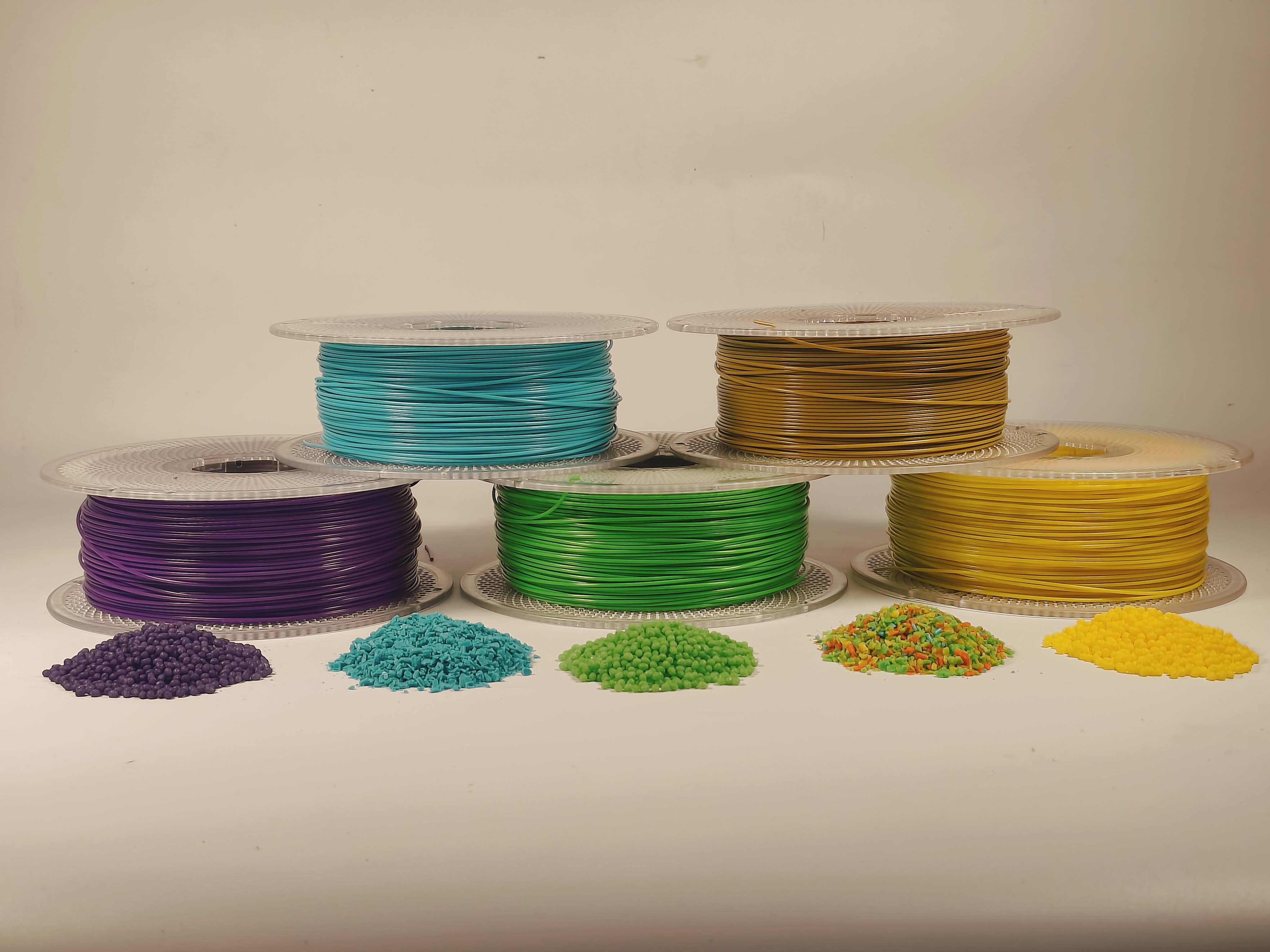

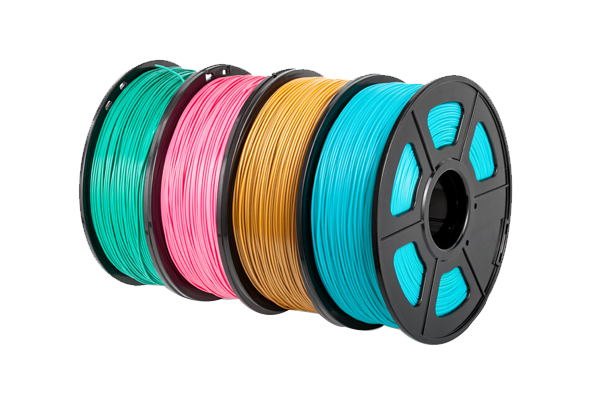

Custom High-Precision Filament
Create filaments with custom colors, and materials
Waste Recycling

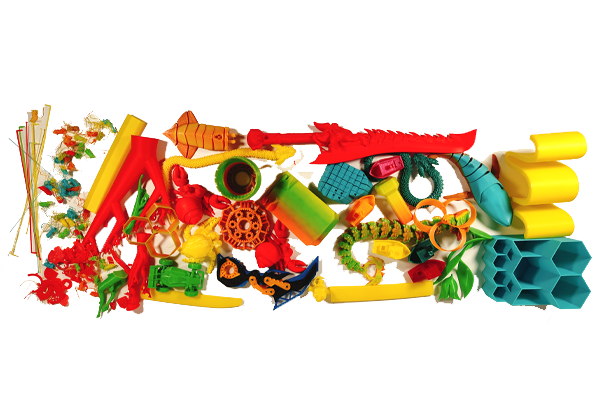

Recycle all 3D printing waste (finished/failed prints, supports, Brim、skirts)
Material R&D
Conduct blending experiments
Develop innovative composites and functional filaments
Professional Use
Aerospace: Small-batch high-strength specialty filaments
Medical/Education: Biocompatible or educational materials
